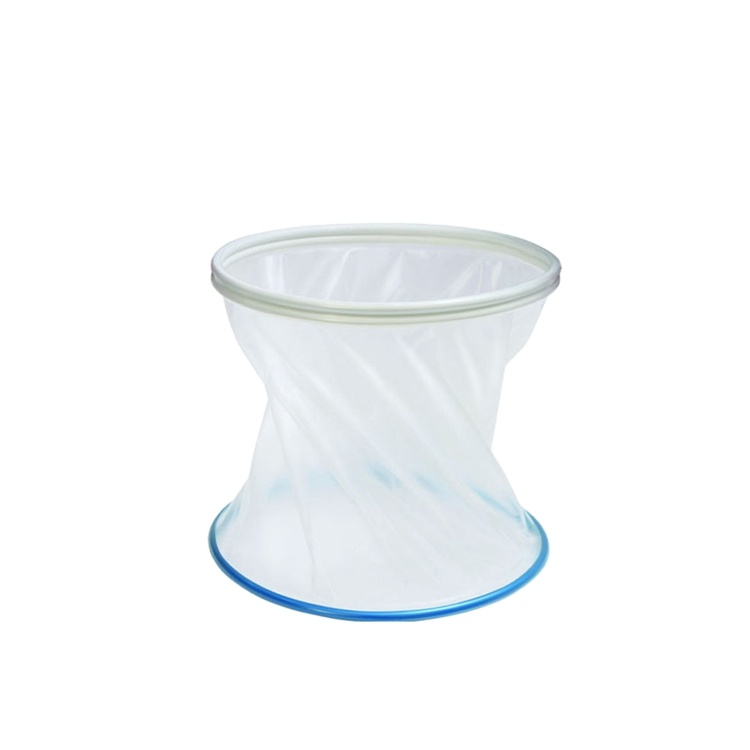

Wound Protector

The single-use surgical wound protector is placed into the position, it can retract the incision to the maximum for better operational vision and protect the incision wall simultaneously..Precision Medical is wound protector manufacturer & supplier & factory.
  • PQA60/70-60/150

  • Precision

  • 3 years

  • Metal

  • Carton Box

  • 5000 Piece/Pieces per Month

  • 1pc/sterilized box, 10boxes/ctn or as your required

  • CE

  • 3 years

  • 3 years

  • 1unit

  • Yes

  • White

  • Machinery

  • Online technical support

  • Class II


Wound Protector introduction

Wound Protector Lead Time:


1 - 1000

1001 - 10000

10001 - 1000000


Est. Time(days)




To be negotiated

Wound Protector Scope of Application:

wound protector is suitable for small incision surgery and minimally invasive surgery to expand the incision field, prevent incision injury and reduce incision infection.

Usage Of Wound Protector:

The single use surgical wound protector is placed into the position, it can retract the incision to maximum for better operational vision and protect the incision wall simultaneously.

The single use surgical wound protector is not intended for use except as indicated.

Wound Protector Features & Indications:

Advantages of Incision Protector

Open incision without damage

  • Uniform tension, reduce tissue damage.

  • Maximally open incision to provide better operation view.

  • Squeeze cutting edge to prevent leakage.

Protect incision

  • Prevent tumour implantation metastasis in incision .

  • Prevent infection of incision .

  • Prevent incision from burn due to misoperation.

Indications of Applied Medical Wound Protector:

The applied medical wound protector is designed to be used in abdominal surgeries, small incision surgeries, and endoscopic surgeries to maximize the incision for better operational vision and protect the incision wall.


Wound Protector Model & Specification:

Model Number Specifications Standard

Wound Protector Applicable Surgery


60/70 - 60/50 60 x 70 x 150
80/90 - 80/150 80 x 90 x 150
120/130 - 120/250 120 x 130 x 250

360 degree prolecting incision and wound tissue contact is olation, so as 1o reduce the operation incision complicatiors.

150/160 - 150/250 150 x 160 x 250
180/190 - 180/250 180 x 190 x 250
220/230 - 220/250 220 x 230 x 250
270/280 - 270/250 270 x 280 x 250


40/30 - 15/25 40 x 30 x 25
50/40 - 25/25 50x 40 x 25
70/60 - 35/50 70 x 60 x 50
70/70 - 35/40 70 x 70 x 40

    Our wound protector retractor is widely used in wound protector surgery. If you are interested, please contact Precision sales manager.

Wound Protector How to use:

1. Wound Protector is used by qualified doctors or under their guidance, strictly in accordance with the surgical specifications, and aseptic operation.

2. Choose product specifications according to abdominal wall thickness, incision, and expansion size.

3. Operation method:

(PQA type) (1) Configuration preparation: flatten the implant ring into a tongue shape, push it into the incision, the inner ring elastically expands, and jam the inner wall of the incision; (2) Insert the incision: pinch the outer snap ring with both hands at 3 o'clock At the 9 o'clock position, the eversion or inversion will shorten the passage, and the radial expansion force of the passage will continue to increase until the outer ring can no longer be reversed, and the incision is fully expanded and protected; (3) Take out: stretch with your fingers Into the incision. Buckle the implant ring and pull it out or push it from the channel to the inner and outer ring, and then pull it out after displacement. You can also use a hooked appliance to pull it out.

(PQB type) (1) Configuration preparation: turn a part of the inner snap ring into the pipe and pass through the outer snap ring to turn it up from the pipe, so that the inner snap ring is divided into upper and lower parts in the outer snap ring, forming an upper and a lower part Tongue-like; (2) Embedding in incision: align the lower tongue-like anterior segment of the configured retractor to the incision and close to the incision wall, and then push the upper tongue to slowly expand the inner snap ring in the incision, and finally implant The ring is reset and inserted into the incision, the inner and the outer are separated, the channel is close to the incision wall, and the incision is expanded; (3) Take out: reach the fingertips into the retractor, pull a part of the implant ring, turn the implant ring and take it out from the incision , If the fingertips cannot be reached, you can use a hook to hook the inner snap ring and take it out; you can also push the inner and outer ring out of the channel to deform it and take it out.

Wound Protector Quick Details :

Place of Origin
Brand Name
Model Number
Power Source
2 years
After-sale Service
Online technical support
Acrylic, Plastic
Shelf Life
2 years
Quality Certification
Instrument classification
Class II
Safety standard
EN 149 -2001+A1-2009

Wound Protector FAQ:

1. Q: Are you wound protector manufacturer or trading company?

A: wound protector manufacturer & factory & supplier

2. Q: Can I order 1 or 2 pcs as the same price for the distributors?

A: Yes

3. Q: What is the delivery time?

A: 7 days for Storage.

4. Q:Can you print our logo on the products?


5. Q: What’s your warranty and after service policy?

A:3 Years

6. Q: What is the MOQ?

A:1 piece
